Precision Movement Support Component (Stepped Spacer)
Precision Movement Support Component (Stepped Spacer)
Precision-machined brass pillar/spacer with shouldered ends used in pressure gauge movement assemblies—maintains exact plate spacing, improves alignment, and supports smooth gear operation.

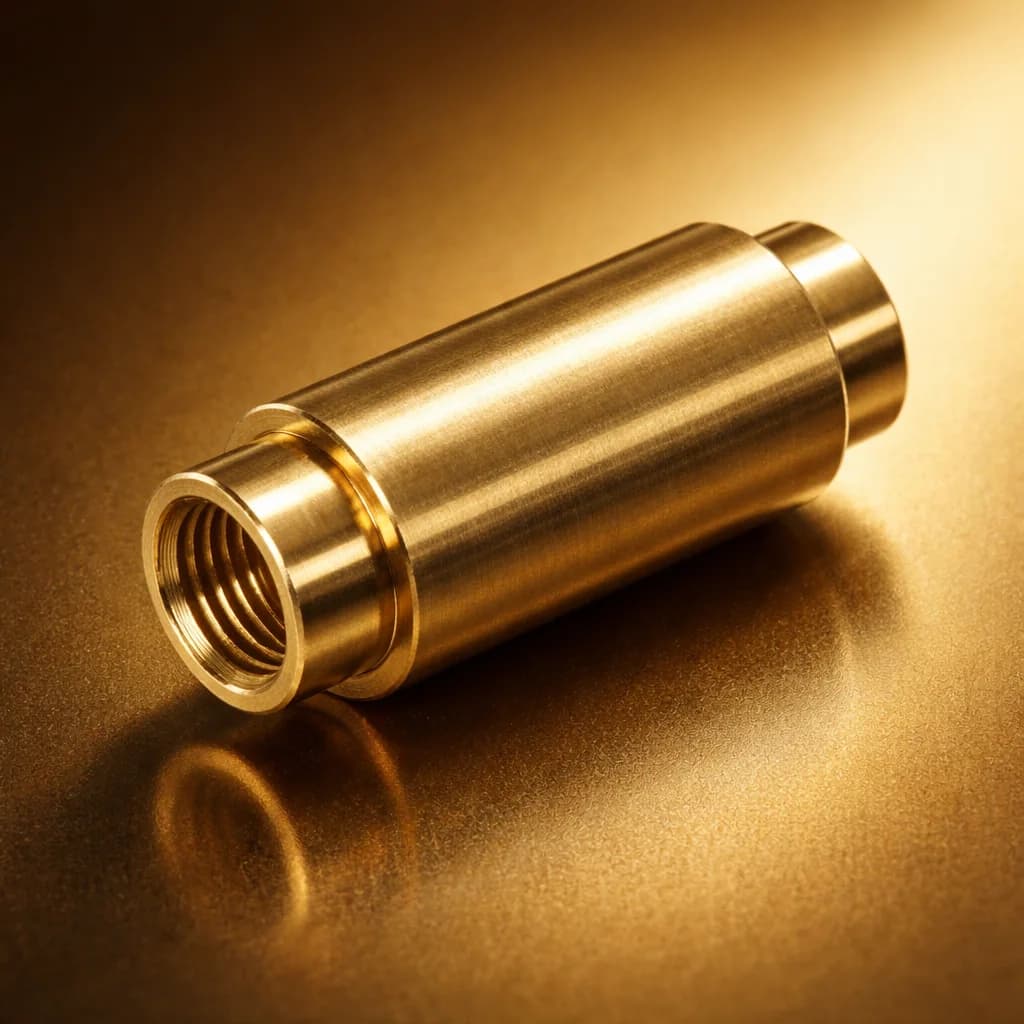

The Pressure Gauge Pillar, also known as a Brass Spacer, is a critical precision-machined component used inside pressure gauge movement assemblies. Designed as a small cylindrical pillar with stepped (shouldered) ends on both sides, it fits securely between the two parallel plates of the movement. It maintains accurate spacing, improves alignment of gears and pinions, and adds structural stability—helping ensure smooth operation and long-term accuracy of pressure measurement instruments. Manufactured from free-cutting brass/copper alloy, it offers excellent corrosion resistance and durable performance.
Material
Free Cutting Brass / Copper Alloy
Where this product is commonly used — from standard assemblies to custom requirements.
Built for accurate fitment, consistent finishing, and reliable performance in real‑world applications.
Benefits
Standard technical information. Custom specs are available on request.
Product Name
Pressure Gauge Pillar / Brass Spacer
Material
Free Cutting Brass / Copper Alloy
Type
Precision Machined Component
Shape
Cylindrical with Stepped Ends (Shoulders)
Application
Pressure Gauge Internal Movement
Fixing Method
Shouldered ends fit into plates; can be fixed by punching or riveting (as per design)
Function
Maintains spacing and alignment between movement plates for smooth operation
Also Known As
Pressure Gauge Pillar · Brass Spacer · Movement Spacer · Spacer Pillar
| Product Name | Pressure Gauge Pillar / Brass Spacer |
| Material | Free Cutting Brass / Copper Alloy |
| Type | Precision Machined Component |
| Shape | Cylindrical with Stepped Ends (Shoulders) |
| Application | Pressure Gauge Internal Movement |
| Fixing Method | Shouldered ends fit into plates; can be fixed by punching or riveting (as per design) |
| Function | Maintains spacing and alignment between movement plates for smooth operation |
| Also Known As | Pressure Gauge Pillar · Brass Spacer · Movement Spacer · Spacer Pillar |
