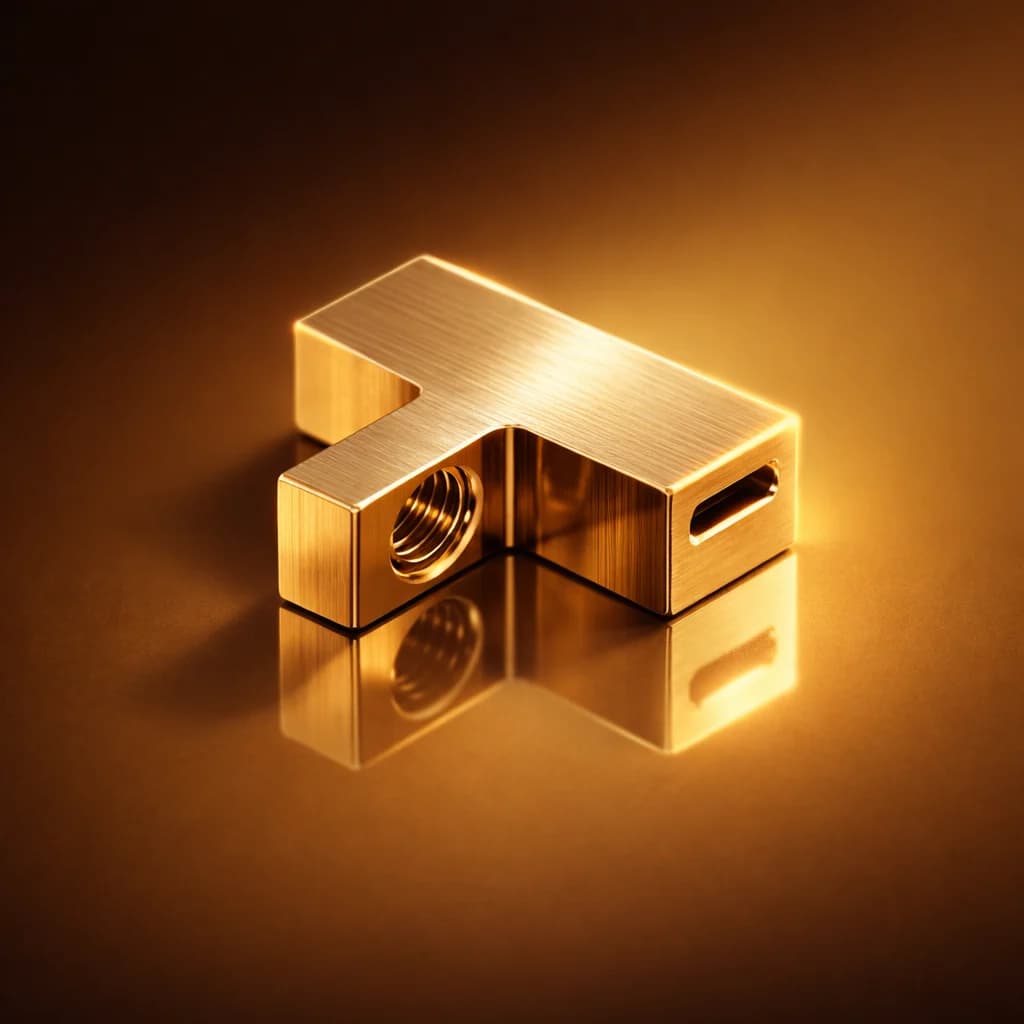

Core brass parts used in pressure gauge manufacturing—socket/block with threaded pipeline connection and Bourdon tube slot, plus end plate/tip for sealing and movement linkage—precision made for durability and accurate readings.
In pressure gauge manufacturing, the Socket (Block) and End Plate (Tip) are among the most essential brass components—directly influencing accuracy, strength, and overall performance. The socket/block acts as the main structural base and connection point between the pressure source and the gauge, typically featuring a threaded bottom connection for secure pipeline attachment and a precision-machined slot on top to firmly hold the Bourdon tube. The end plate/tip is a small square or round cap-like piece that seals the open end of the Bourdon tube (welding/brazing) and includes a link attachment point to transmit tube expansion to the movement mechanism for smooth pointer response. Manufactured from premium free-cutting brass (IS 319) and related copper alloys, these parts deliver high strength, leak resistance, corrosion resistance, and long service life in industrial and commercial gauges.
Where this product is commonly used — from standard assemblies to custom requirements.
Built for accurate fitment, consistent finishing, and reliable performance in real‑world applications.
Benefits
Standard technical information. Custom specs are available on request.
Product Name
Pressure Gauge Brass Parts – Socket (Block) & End Plate (Tip)
Type
Precision Brass Components (Gauge Socket/Block + End Plate/Tip)
Application
Pressure Gauge Manufacturing & Assembly
Socket / Block Details
Solid brass base with threaded bottom for pipeline attachment and precision top slot for Bourdon tube fitment; leak-proof design for high pressure
End Plate / Tip Details
Small cap-like piece (square or round) fitted to Bourdon tube end by welding/brazing; includes link attachment hole/connector for movement mechanism
Also Known As
Pressure Gauge Socket · Gauge Block · Brass Socket · End Plate · Tube Tip · Bourdon Tip
| Product Name | Pressure Gauge Brass Parts – Socket (Block) & End Plate (Tip) |
| Type | Precision Brass Components (Gauge Socket/Block + End Plate/Tip) |
| Application | Pressure Gauge Manufacturing & Assembly |
| Socket / Block Details | Solid brass base with threaded bottom for pipeline attachment and precision top slot for Bourdon tube fitment; leak-proof design for high pressure |
| End Plate / Tip Details | Small cap-like piece (square or round) fitted to Bourdon tube end by welding/brazing; includes link attachment hole/connector for movement mechanism |
| Also Known As | Pressure Gauge Socket · Gauge Block · Brass Socket · End Plate · Tube Tip · Bourdon Tip |
